Peplink Cellular CAT

Wireless SD-WAN - Untethered from fixed lines

Increased Band Support and Carrier Aggregation

Peplink offers a wide range of cellular routers supporting LTE-Advanced (LTE-A). LTE-A is the next step in the evolution of LTE networks.

LTE-A features greater location diversity, and one modem can cover more regions. LTE-A also supports the newer region and carrier-specific bands. These are often much faster than the legacy bands that can become oversaturated.
LTE-A models also support TD-LTE bands 38 (2600 MHz) and 40 (2300 MHz) for the Asia-Pacific markets.
For the Australian and New Zealand market, the Peplink LTE-A model supports Band 28.

In addition, LTE-A routers can use Signal Carrier Aggregation (SCA) to simultaneously connect multiple signal channels for up to twice your current connection speed.

And now, Peplink is ready to propel customers into the 5G-era with a range of brand new flagships featuring an innovative modular platform architecture for different use cases.

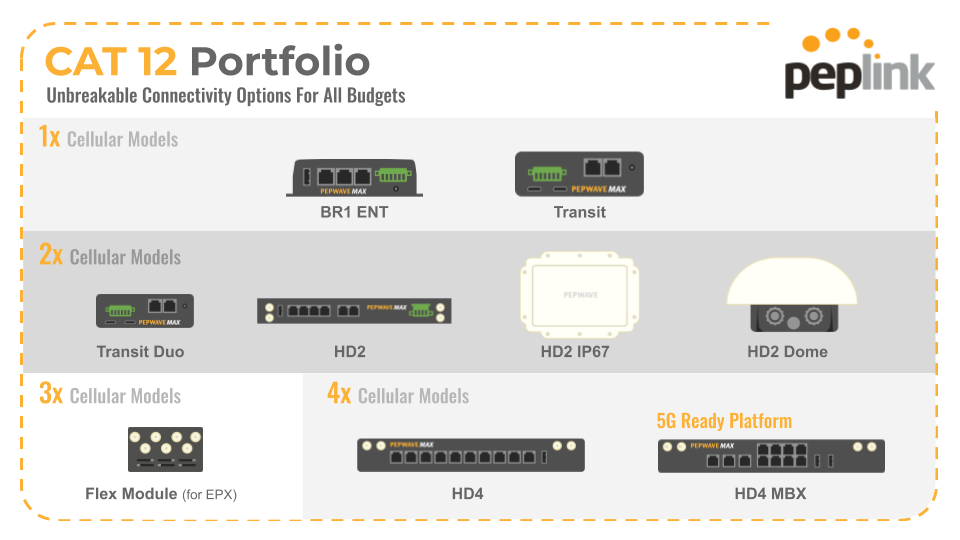

Cat12 devices are BR1 Ent, Transit, Transit Duo, HD2, HD2 IP67, HD2 Dome, HD4, HD4 MBX and the Flex module for the EPX/SDX, Balance 310X and Balance 20X module

CAT 18 Portfolio

Want the best reception and fastest cellular Peplink has? Want it now? Then CAT 18 routers are just the thing you need.

They are equipped with up to 4x4 MIMO and support a wider range of frequencies, ensuring the best signal reception.

If you need speed, Peplink's X-Series (MBX, EPX, SDX) supports up to 1.2Gbps download and 150Mbps upload per radio. With carrier aggregation, they can combine up to 5x frequencies for blazing fast downloads.

CAT 12 Portfolio

Sometimes, 4G LTE CAT 4 is not enough for bandwidth-hungry users. So Peplink is presenting 4G LTE CAT 12 routers! These routers are embedded cellular modem delivers up to 600Mbps downlink speed and 150Mbps uplink speed.
Single cellular: MAX BR1 ENT, MAX Transit
Dual cellular: MAX Transit Duo, MAX HD2, MAX HD2 IP67, MAX HD2 Dome
Triple cellular: Flex module for EPX
Quad cellular: MAX HD4, MAX HD4 MBX

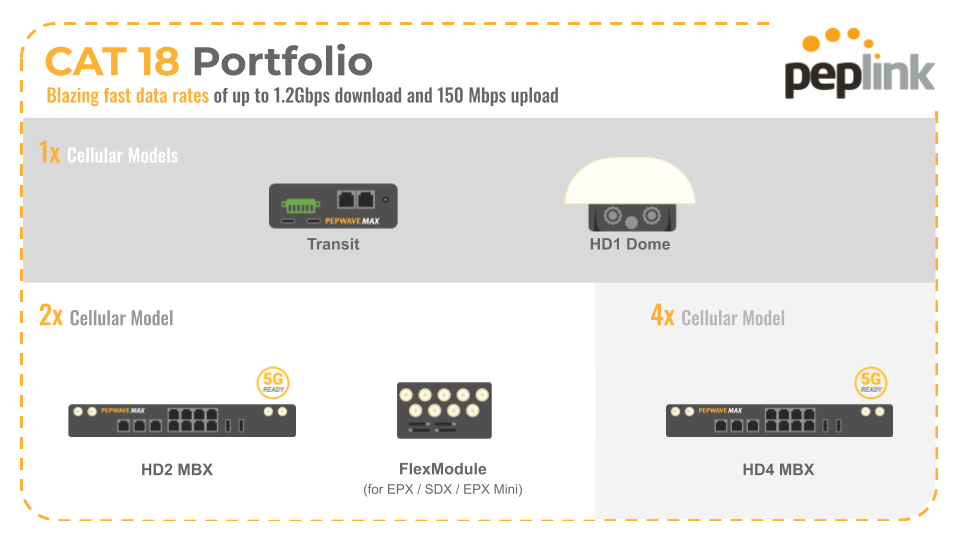

Cat18 devices are BR1 Ent, Transit, HD2 MBX, HD1 Dome, HD4 MBX and the Flex module for the EPX/SDX

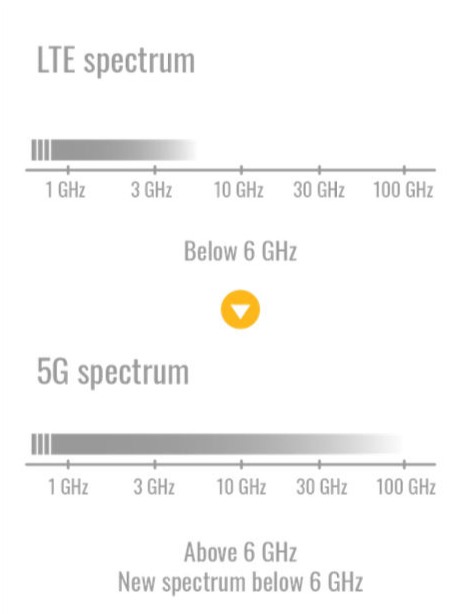

What is 4g speed
Cellular Data Rate (Downlink / Uplink)

Don't forget this is the theoretical maximum data rate. Networks still have gaps in their coverage. Effects of a cellular dead spot can range from stream jitters due to packet loss to dropped connections. This limitation is inherent in all cellular technologies to date.

System integrators need to employ SpeedFusion SD-WAN technology to overcome this limitation: combining the bandwidth of multiple cellular providers and WAN technologies into a single VPN connection. This technology enables reliable connectivity and session persistence even in cellular dead spots.

100Mbps/50Mbps

300Mbps/50Mbps

600Mbps/150Mbps

1.2 Gbps/150 Mbps

5G: 4 Gbps / 700 Mbps
LTEA CAT-20: 2 Gbps / 150 Mbps

Peplink Cellular Bands

CATRegionBands 5GBand 4GBand 3GNameCode
2Worldwide----WCDMA/HSDPA/HSUPA/HSPA+:
B1, B2, B4, B5, B6, B8
EDGE/GPRS/GSM:
B2, B3, B5, B8		3GAE-T
4Europe/
International		--B1, B3, B5, B7, B8,
B20, B38, B40, B41		WCDMA/HSPA+/DC-HSPA+: B1, B5, B8LTELTE-E
4Latin America/
Australia/ NZ		--B1, B2, B3, B4, B5, B7, B8, B28, B40WCDMA/HSPA+/DC-HSPA+:
B1, B2, B5, B8		LTELTE-MX
4US--B2, B4, B5, B12, B13, B14,
B25, B26, B71, B66		WCDMA/HSPA+/DC-HSPA+: B1, B2, B4, B5, B8 EV-DO Rev.A: BC0, BC1, BC10LTELTE-US
6Asia Pacific--B1, B3, B5, B7, B8, B18, B19, B21, B28, B38, B39, B40, B41WCDMA/HSPA+/DC-HSPA+: B1, B5, B8, B9, B19
UMTS: B6TD-SCDMA: B39		LTEALTEA-P
6Worldwide--B1, B2, B3, B4, B5, B7, B8 , B12, B13, B20, B25, B26, B29, B30, B41WCDMA/HSPA+/DC-HSPA+: B1, B2, B3, B4, B5, B8LTEA
LTEA-W
7EMEA and APAC-- B1, B3, B7, B8, B20, B28, B32, B38, B40, B41, B42, B43HSPA+ B1, B5, B8 LTEALTEA-KSA
6/12America/ Europe/
FirstNet Ready		--Cellular 1:
LTE-A Pro: B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B14, B18, B19, B20, B26, B29, B30, B32, B41, B42, B43, B46, B48, B66
Cellular 2:
LTE-A: B1, B2, B3, B4, B5, B7, B8, B12, B13, B20, B25, B26, B29, B30, B41		Cellular 1:
HSPA+: B1, B2, B4, B5, B6, B8, B9, B19
Cellular 2: WCDMA/HSPA+/DC-HSPA+: B1, B2, B3, B4, B5, B8		LTEA/
LTEA Pro		LTEA-WF
12North America / Global--B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B14, B18, B19, B20, B26, B29, B30, B32, B41, B42, B43, B46, B48, B66B1, B2, B4, B5, B6, B8, B9, B19LTEA ProLTEA-R
12Global--B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B18, B19, B20, B26, B28 , B29, B30, B32, B41, B42, B43, B46, B48, B66B1, B2, B4, B5, B6, B8, B9, B19LTEA
Pro		LTEA-K
18Global--B1, B3, B25(B2), B66(B4), B26(B5/B18/B19), B7, B8, B12(17), B13, B14 , B20, B28, B29, B30, B32, B71, B38, B39, B40, B41, B42, B43, B46, B48B1, B2, B4, B5(B19), B8Gigbit
LTEA		GLTE-G
20Global--B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B46, B48, B66, B71HSPA+/WCDMA: B1, B2, B3, B4, B5, B6, B8, B9Gigbit
LTEA		GLTE-S
22Global/5G5G (NSA) Sub 6Ghz: n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n41, n66, n71, n77, n78, n79B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B18, B19, B20, B21, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71n/a5G5GD
22Global/5G5G (NSA) Sub 6Ghz: n1, n2, n3, n5, n8, n28, n41, n66, n71, n77, n78, n79B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B18, B19, B20, B21, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71n/a5G5GH

Cellular band frequencies

You will find below the frequencies each cellular band translate to and what Peplink modem code covers this frequency.

BandMHzModels
12100
LTE-E, LTE-MX, LTEA-P, LTEA-W, LTEA-KSA LTEA-WF, LTEA-K, LTEA-R, GLTE-G, GLTE-S, 5GH
21900LTE-MX, LTE-US, LTEA-W, LTEA-WF, LTEA-K, LTEA-R, GLTE-S, 5GH
31800LTE-E, LTE-MX, LTEA-P, LTEA-KSA, LTEA-W, LTEA-K, LTEA-R, GLTE-G, 5GH
41700LTE-MX, LTE-US, LTEA-W, LTEA-WF, LTEA-K, LTEA-R, GLTE-S, 5GH
5850LTE-E, LTE-MX, LTE-US, LTEA-P, LTEA-W, LTEA-WF, LTEA-K, LTEA-R, GLTE-S,5GH
72600LTE-E, LTE-MX, LTEA-P, LTEA-KSA, LTEA-W, LTEA-WF, LTEA-K, LTEA-R, GLTE-G, GLTE-S,5GH
8900LTE-E, LTE-MX, LTEA-P, LTEA-KSA, LTEA-W, LTEA-WF, LTEA-K, LTEA-R, GLTE-G, GLTE-S, 5GH
9n/aLTEA-WF, LTEA-K, LTEA-R
12700LTE-US, LTEA-W, LTEA-WF, LTEA-K, LTEA-R, GLTE-G, GLTE-S, 5GH
13700LTE-US, LTEA-W, LTEA-WF, LTEA-K, LTEA-R, GLTE-G, GLTE-S, 5GH
14700LTE-US, LTEA-WF, LTEA-R, GLTE-G, GLTE-S, 5GH
177005GH
18850LTEA-P, LTEA-WF, LTEA-K, LTEA-R, GLTE-S, 5GH
19850LTEA-P, LTEA-WF, LTEA-K, LTEA-R, GLTE-S, 5GH
20800LTE-E, LTEA-KSA, LTEA-W, LTEA-WF, LTEA-K, LTEA-R, GLTE-G, GLTE-S, 5GH
211500LTEA-P
251600LTE-US, LTEA-W, LTEA-WF, GLTE-G, GLTE-S, 5GH
26850LTE-US, LTEA-W, LTEA-WF, LTEA-K, LTEA-R, GLTE-S, 5GH
28700LTE-MX, LTEA-P, LTEA-KSA, LTEA-K, GLTE-G, GLTE-S, 5GH
29700LTEA-W, LTEA-WF, LTEA-K, LTEA-R, GLTE-G, GLTE-S, 5GH
302300LTEA-W, LTEA-WF, LTEA-K, LTEA-R, GLTE-G, GLTE-S, 5GH
321500LTEA-KSA, LTEA-WF, LTEA-K, LTEA-R, GLTE-G, GLTE-S, 5GH
342000GLTE-S, 5GH
382600LTE-E, LTEA-KSA, LTEA-P, GLTE-G, GLTE-S, 5GH
391900GLTE-G, GLTE-S, 5GH
402300LTE-E, LTE-MX, LTEA-KSA, LTEA-P, GLTE-G, GLTE-S, 5GH
412500LTE-E, LTEA-KSA, LTEA-P, LTEA-W, LTEA-WF, LTEA-K, LTEA-R, GLTE-G, GLTE-S, 5GH
423500LTEA-KSA, LTEA-WF, LTEA-K, LTEA-R, GLTE-G, GLTE-S, 5GH
433700LTEA-KSA, LTEA-WF, LTEA-K, LTEA-R, GLTE-G
465200LTEA-WF, LTEA-K, LTEA-R, GLTE-G, GLTE-S, 5GH
483500LTEA-WF, LTEA-K, LTEA-R, GLTE-S, GLTE-G
661700LTE-US, LTEA-WF, LTEA-K, LTEA-R, GLTE-G, GLTE-S, 5GH
71600LTE-US, GLTE-G, GLTE-S, 5GH
