Comprehensive Transportation Connectivity Solution

Transportation deployments face a number of challenges. Spotty network coverage produces cellular dead spots throughout the trip. Even when connectivity is available, there may not be enough throughput for bandwidth-intensive tasks such as streaming or video conferencing. SpeedFusion SD-WAN solves this problem by combining the bandwidth of multiple connections.

In addition, Routers, access points, and cameras all need a reliable supply of power to operate. The SD Power Management Unit (SD-PMU) and the upcoming BR1 Power regulates and manages power directly from the vehicle, while the rugged SD-Switches deliver 802.3at PoE to cameras, access points, and Ip Phones. To pull our ecosystem together, we have InControl cloud management. From any web browser, users could manage all the aforemen tioned devices as well as track the location of any vehicle equipped with a GPS-enabled Peplink router.

Benefit from Using the Ad Delivery Service

With the Ad Delivery Service, you can place advertisements before users connect to your Wi-Fi. You can show them a banner carousel, where they will stay for 10 seconds before connecting. You can also show them a video that they will watch before connecting.

Ad Delivery ServiceAd Delivery Service

Peplink Solutions Diagram for Transportation Industry

MAX Transit Series

Built from the ground up to fit the needs of transportation deployments. Features full certifications as well as vehicle-specific features such as ignition sensing.

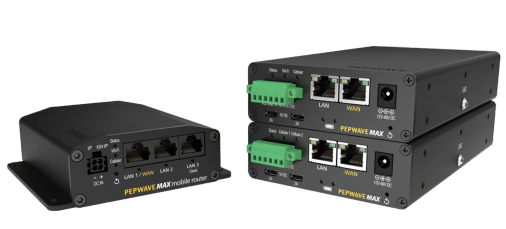

Pepwave MAX Transit

M12 connectors deliver the speed, reliability, and ruggedness.

Introduced in 1985, the M12 connector has built a decades-long track record as one of the most reliable connectors for industrial applications. Once used primarily by automobile manufacturers, the M12 has become the industry standard in factory automation, autonomous robotics, communication, measurement and control, and many other applications.

Compared to the RJ45, the other most commonly used industrial connector, M12 connectors offer superior performance in harsh conditions due to the circular design that shields contacts from contaminants such as dust, moisture, and foreign objects, while also protecting against impact, vibration, UV exposure, and temperature changes

Peplink M12 devices

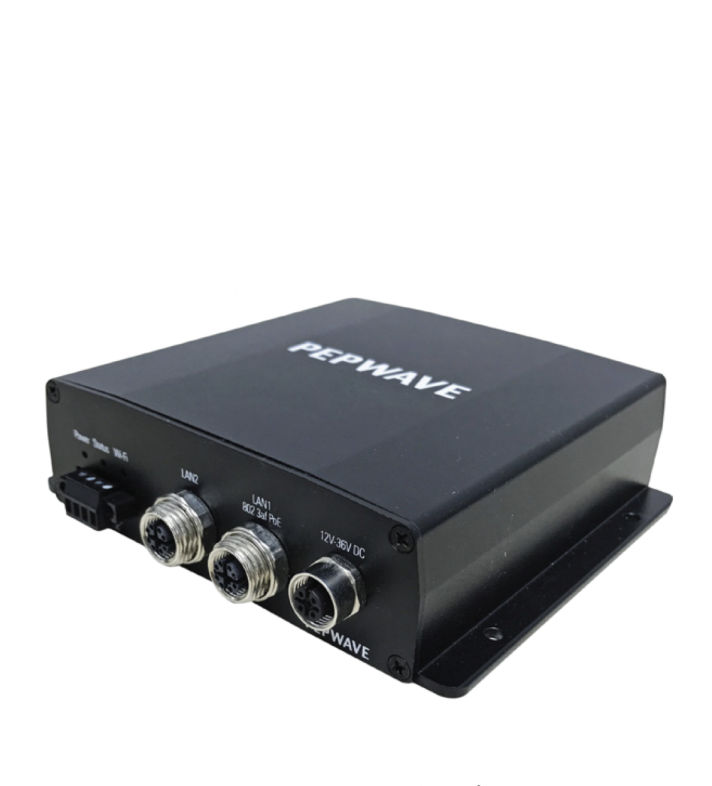

Pepwave AP One M12

MAX HD2/4 MBX

Transit

Transit Duo

Balance 710

AP One rugged

and more

Train connectivity solutions

M12 FAQ

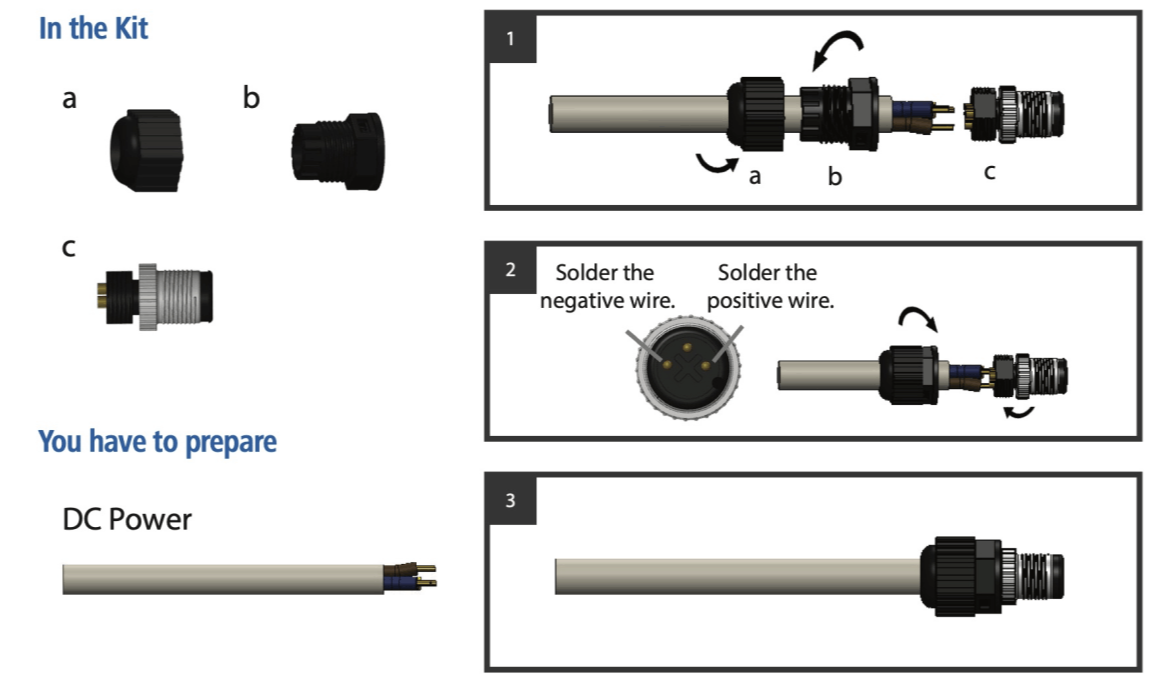

DC Power Connector wiring diagram

M12 wiring diagram for DC Power Connector for with 3-4 pin layout

LAN M12 wiring diagram

LAN M12 wiring diagram - For network ports with 8 pin layout for 1 Gb links

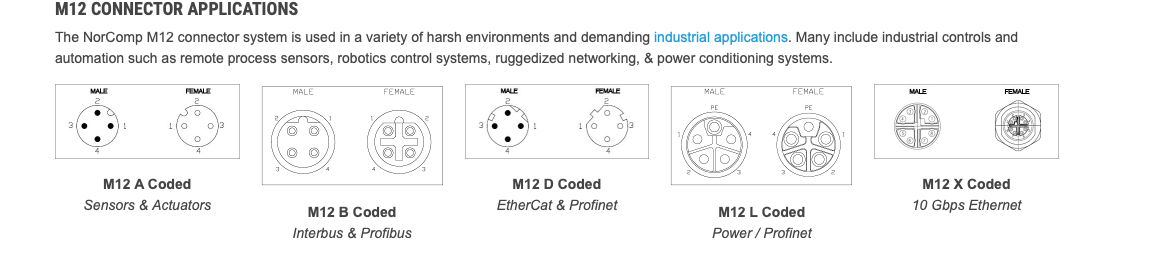

M12 Connector overview

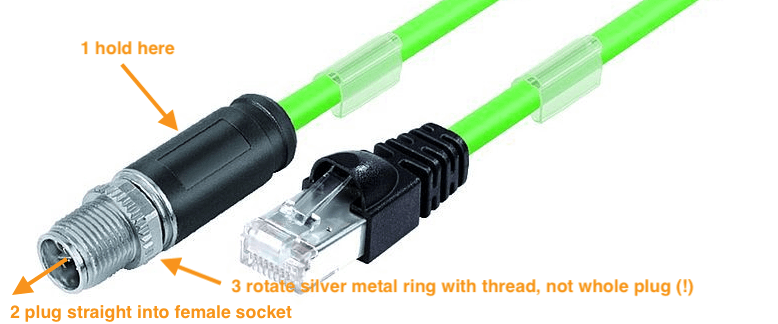

M12 plug installation

During installation the male plug is inserted into the M12 female socket on the device but “NOT ROTATED”. There is just a ring that rotates the metal part and slowly secures the M12 connection in place (see picture). Gigabit LAN/WAN ports require the 8 pin M12 plugs (X-Coded) to work.
