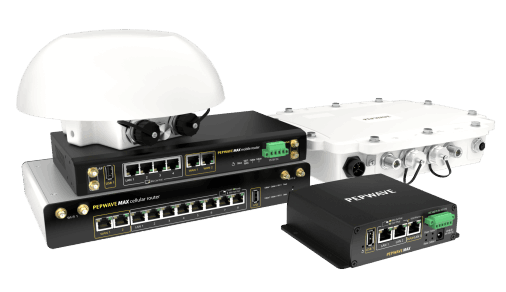

The wireless Pepwave MAX routers of industrial 4/5G routers are designed to provide secure WAN access in environments where wired solutions are too expensive to deploy. The MAX series feature GPS fleet tracking, serial-to-IP terminal services, VPN security, and a wide temperature range. These features make them ideal for enabling fleet management, video surveillance,
Internet of Things (IoT) and machine-to-machine M2M deployments. InControl central management simplifies your network, making it scalable, while SpeedFusion VPN protects the integrity of remote access and connectivity to critical devices.

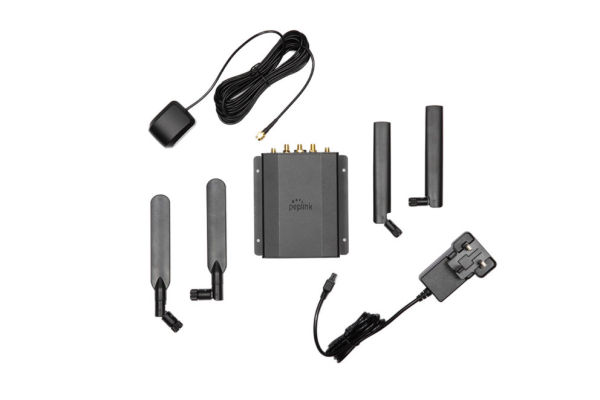

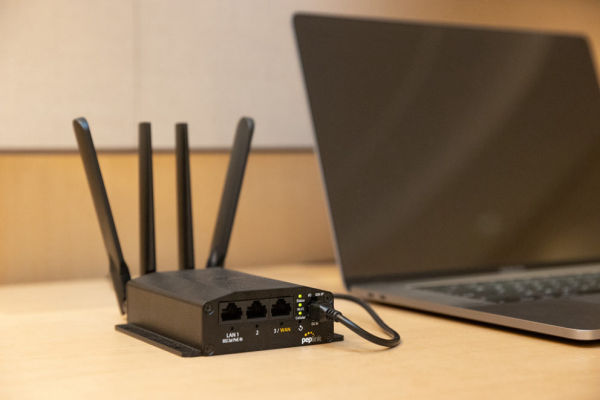

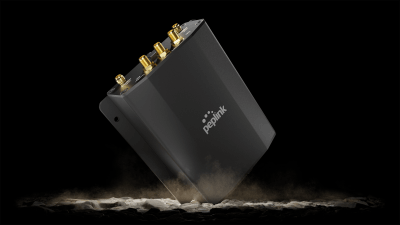

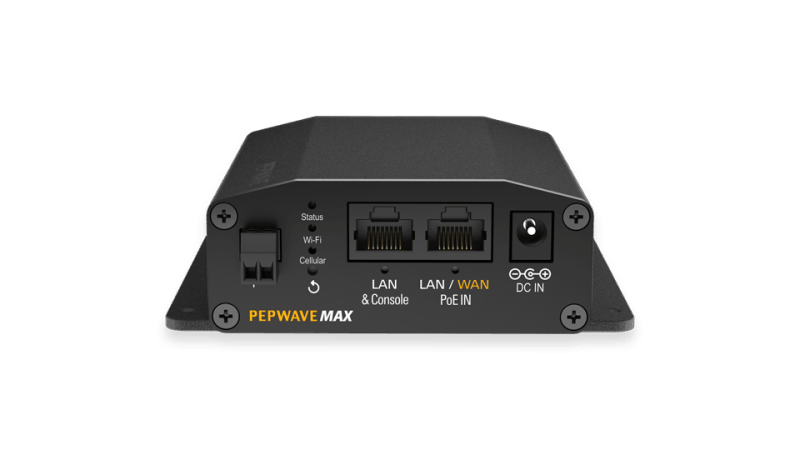

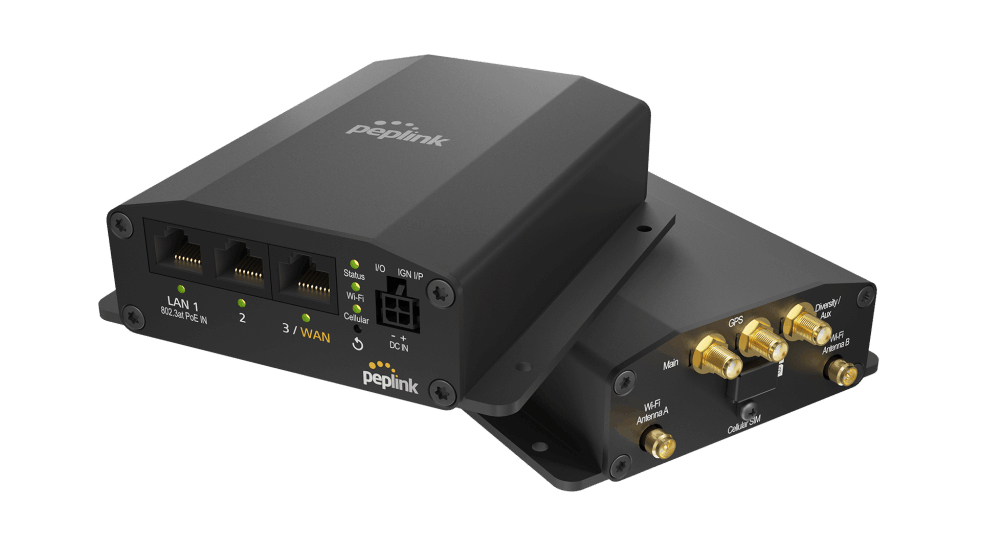

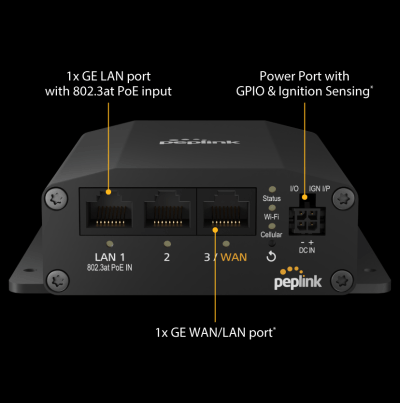

Peplink unveils the new and improved mobile router, MAX BR1 Mini. The all-rounder offers durability, compactness, versatility, and numerous features to support use cases involving large network deployments and out-of-band (OOB) management. MAX BR1 Mini is available in LTE CAT-4, CAT-6 or CAT-7 (US only) models, incl. PrimeCare subscription and Feature Pack bundles.
Make sure you don’t miss out on the Feature Pack, which includes WAN Activation, Wi-Fi WAN, Hot Failover, WAN Smoothing, GPIO, Ignition Sensing, and more!
SpeedFusion Bandwidth Bonding combines all connected bandwidth into a single superfast stream, using the same or different providers.
Dual SIM slots allow you to use two SIM cards for each single cellular modem, increasing your coverage.
Serial-capable terminal blocks assist in securing power to the device as well as enabling M2M device communication.
MAX industrial 4G routers can withstand punishment and extreme temperatures. IP67 outdoor routers can take on any environment.

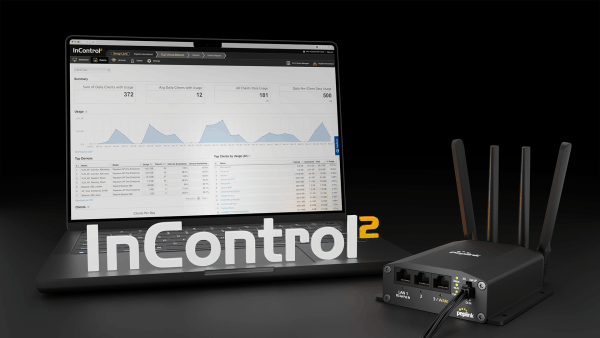

Use InControl to keep tabs on the location of each vehicle and manage your mobile network from any Internet-connected device.
Certifications include: FCC, CE, RoHS, E-Mark, Shock and Vibration Resistance, Railway Applications, and Electromagnetic Compatibility.

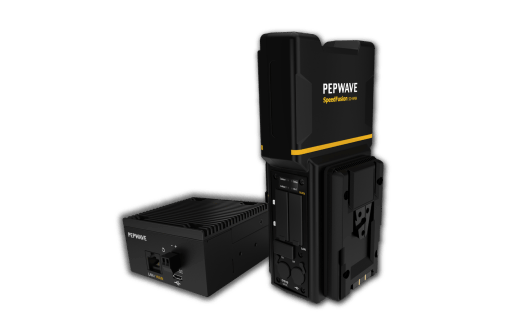

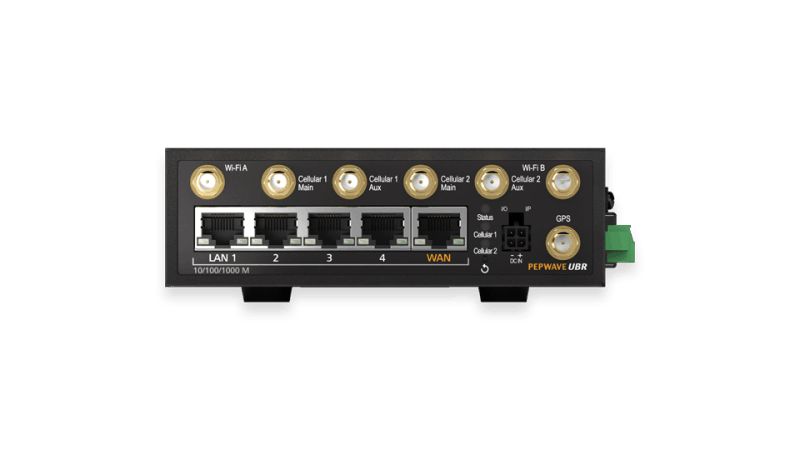

UBR & SpeedFusion engine
Unbreakable Connectivity Right Out of the Box - Integrate SpeedFusion Into Any System
| Features | Ethernet WAN Ports | LAN Ports | Embedded Modem | Recomm. Users (max) | Stateful Firewall Throughput Mbps | WiFi WAN | WiFi AP | SpeedFusion Bandwidth Bonding | No of PepVPN/ SpeedFusion Peers | PepVPN Throughput (256-bit AES) Mbps |
|---|---|---|---|---|---|---|---|---|---|---|
| BR1 Classic | 1 | 2 | 1 | 60 | 100 | b/g/n | 2/5 | 20 | ||

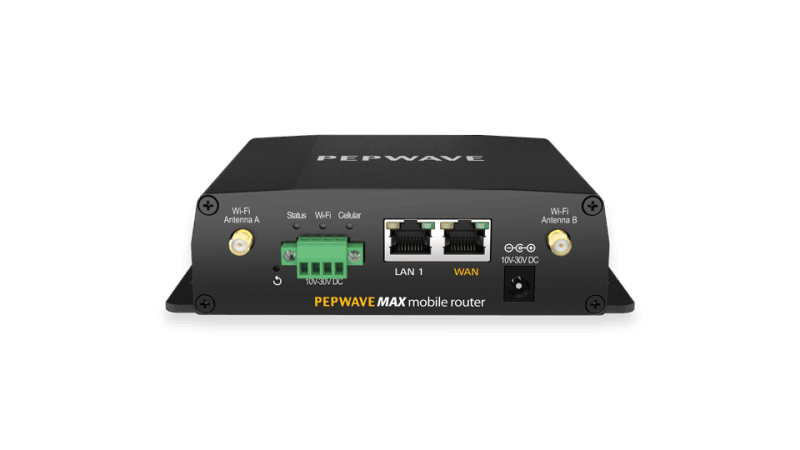

| BR1 MK2 | 1 | 4 | 1 | 60 | 100 | ac/a/b/g/n | 2/5 | 20 | ||
| BR1 Mini | 1 | 1-2 | 1 | 60 | 100 | b/g/n | 2/5 | 20 | ||

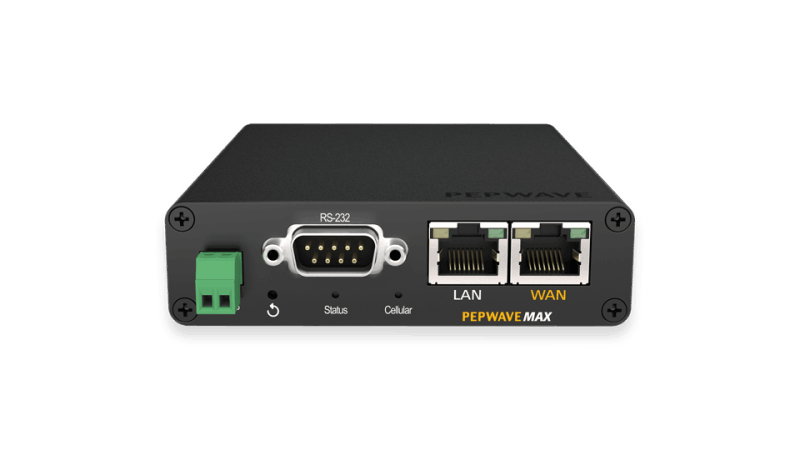

| BR1 M2M | 1 | 1 | 1 | M2M | 100 | -- | 2/5 | 20 | ||
| BR1 Slim | 1 | 1 | 1 | 60 | 100 | b/g/n | 2/5 | 20 | ||

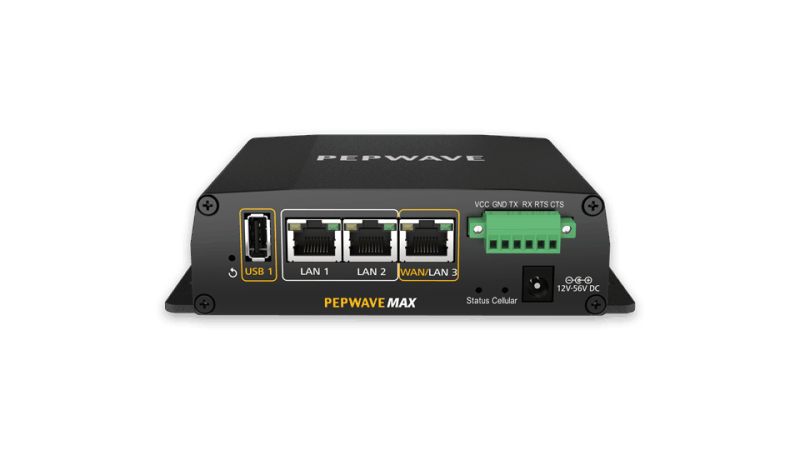

| BR1 ENT | 1 | 2 | 1 | 150 | 300 | -- | 2/5/20 | 60 | ||
| BR1 Pro | 1 | 4 | 1 | 60 | 120 | a/b/g/n | 2/5 | 20 | ||
| Hotspot | 1 | 1 | 1 | 60 | 100 | ac/a/n | 2 | 20 | ||

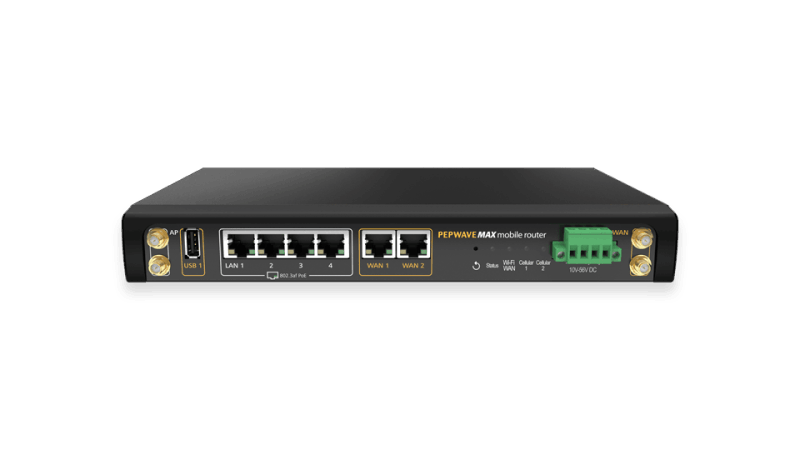

| HD2 | 2 | 4 | 2 | 150 | 400 | ac/a/b/g/n | 2/20 | 55 | ||

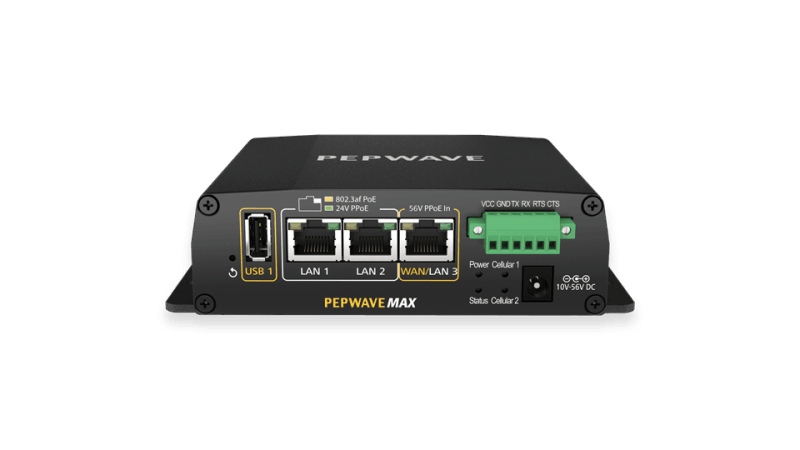

| HD2 mini | 1 | 2 | 2 | 150 | 300 | -- | 2/20 | 60 | ||

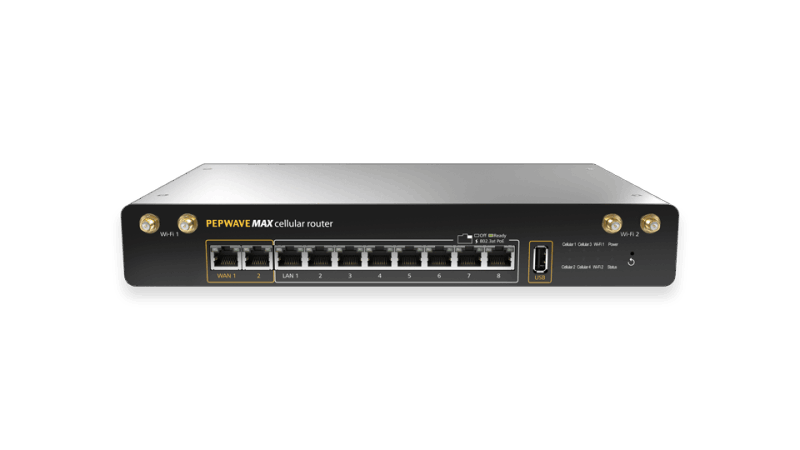

| HD4 | 2/5 | 8/5 | 4 | 500 | 400 | ac/a/b/g/n | 2/20 | 120 | ||

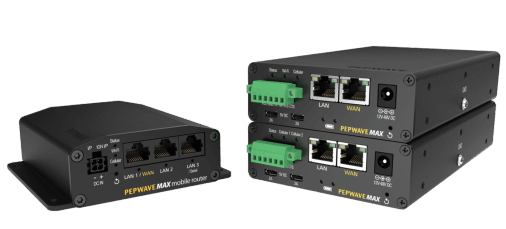

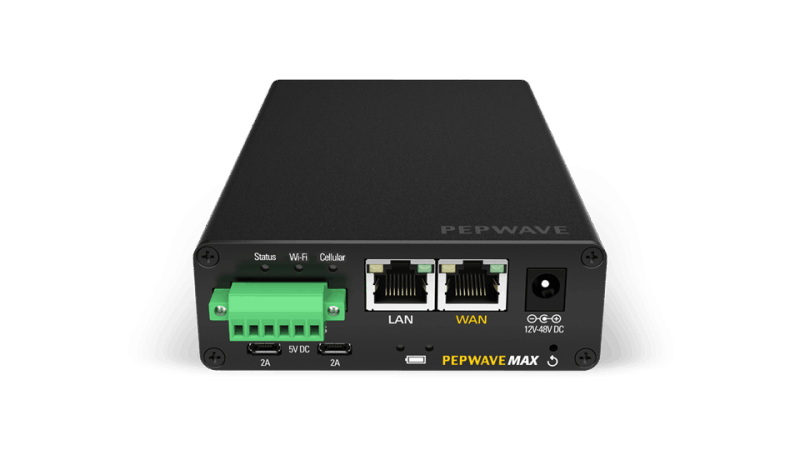

| Transit | 1 | 1 | 1 | 150 | 400 | ac/a/b/g/n | 2 | 60 | ||
| Transit Duo | 1 | 1 | 2 | 150 | 400 | ac/a/b/g/n | 2 | 60 | ||

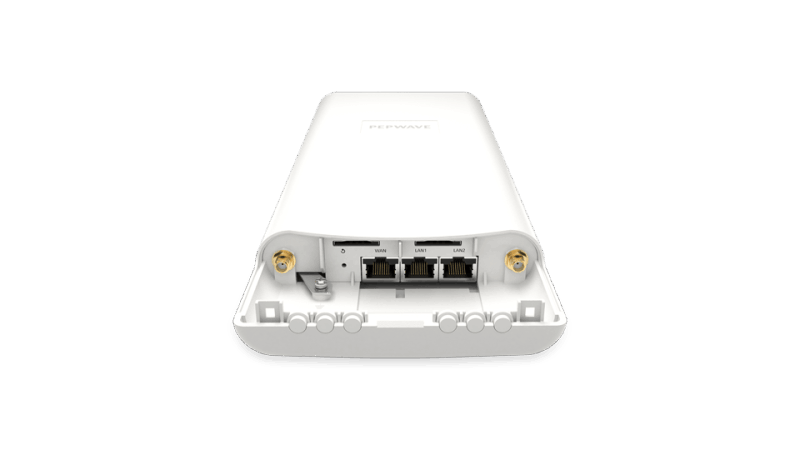

| BR1 IP55 | 1 | 2 | 1 | 60 | 100 | ac/a/b/g/n | 2 | 20 | ||
| BR2 IP55 | 1 | 2 | 2 | 60 | 100 | ac/a/b/g/n | 2 | 20 | ||

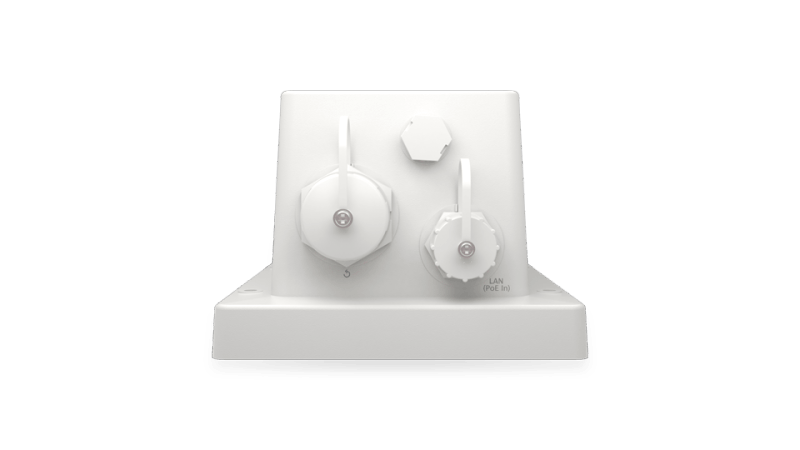

| BR1 IP67 | -- | 1 | 1 | 60 | 100 | b/g/n | 2 | 20 | ||

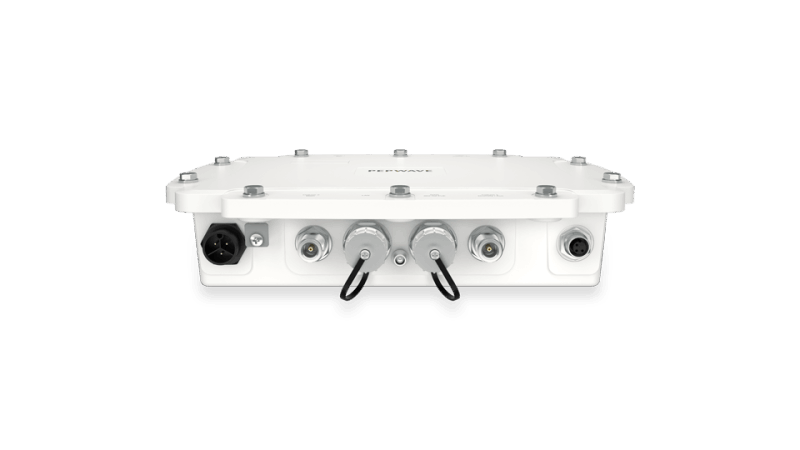

| HD2 IP67 | 1 | 1 | 2 | 150 | 400 | -- | 2/20 | 60 | ||

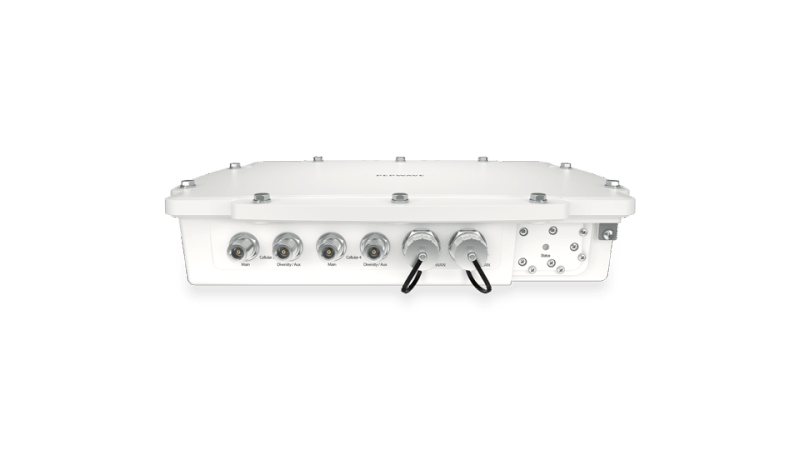

| HD4 IP67 | 1 | 1 | 4 | 500 | 400 | -- | 2/20 | 120 | ||

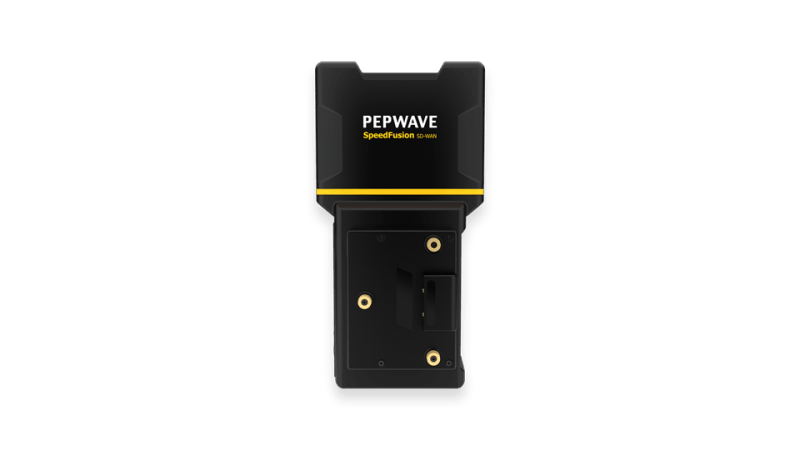

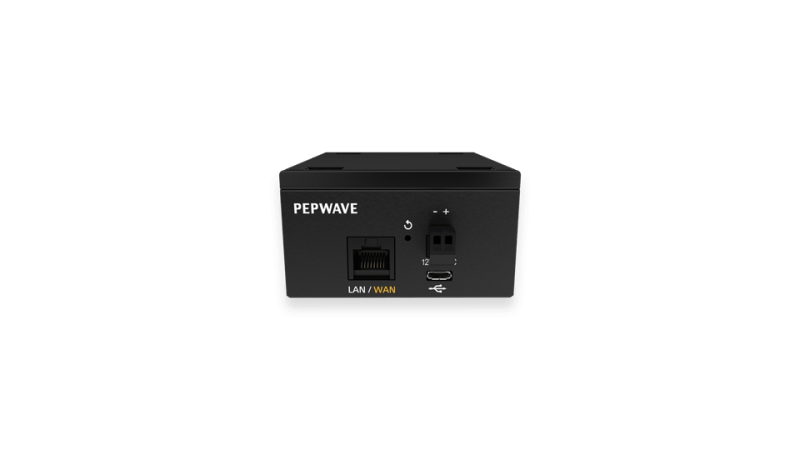

| SpeedFusion Engine | 1 | 1 | 2 | 60 | 100 | -- | 2 | 20 | ||

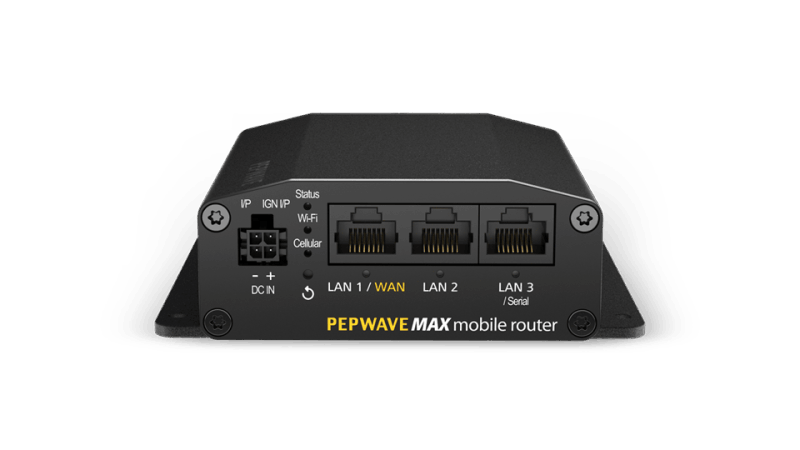

| Transit Mini | 1 | 2 | 1 | 60 | 100 | b/g/n | 2 | 20 | ||

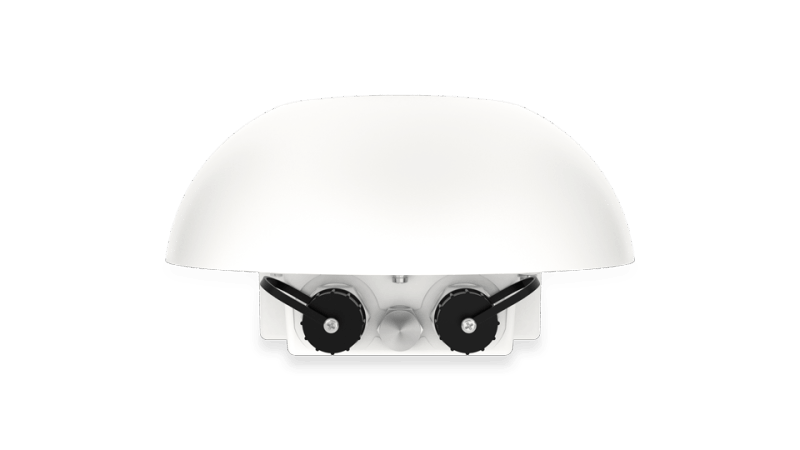

| HD2 Dome | -- | 1 | 2 | 150 | 400 | -- | 2 | 60 |
